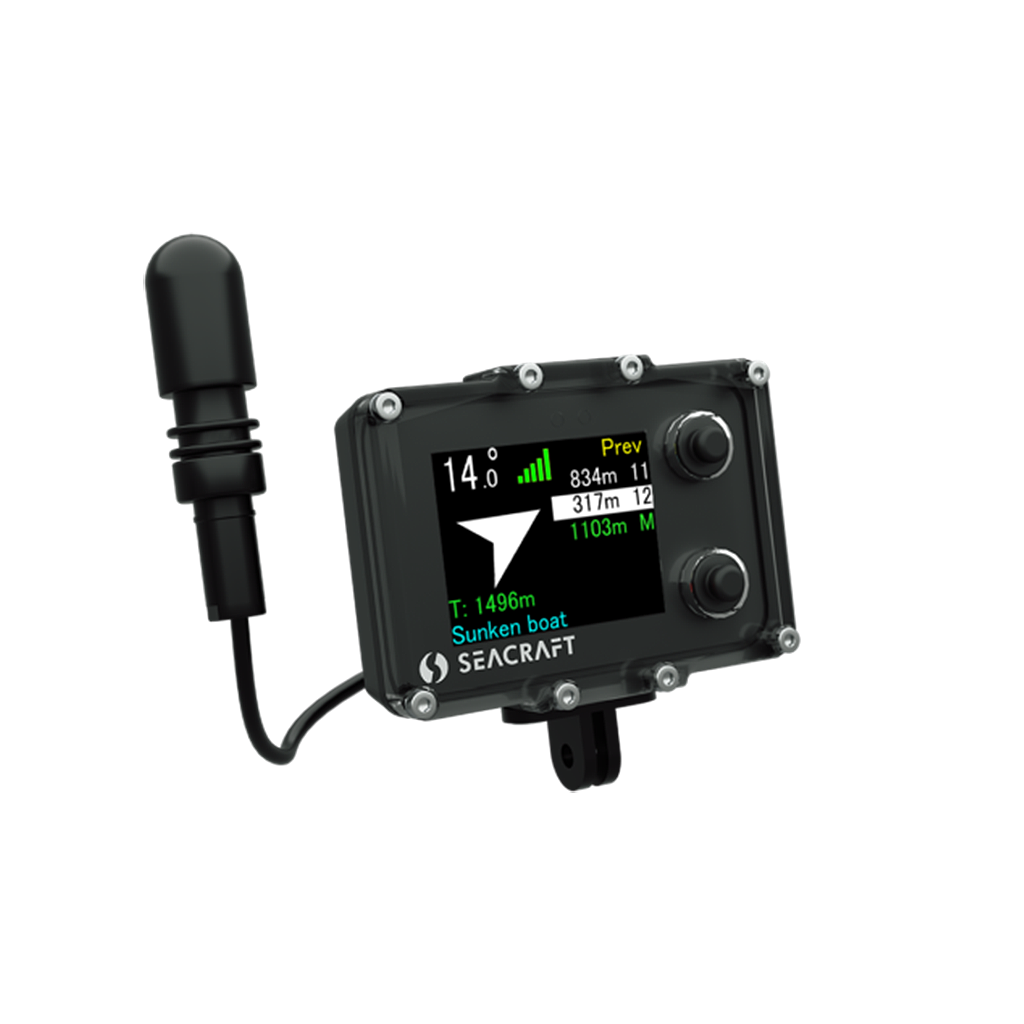

Seacraft ENC3-PRO Navigation Console (w/ GPS Buoy Kit)

Military Tech for Civilian Exploration.

Evolved directly from Seacraft’s military platform (ENC3-MIL), the ENC3-PRO is the most advanced navigation system available to civilian divers. It is designed for missions where "approximate" isn't good enough—scientific surveys, search and recovery, and complex mapping projects.

The "Pro" Advantage: Underwater GPS Recalibration
Standard navigation relies on "Dead Reckoning" (calculating position based on speed and heading). Over long distances, small errors accumulate.

• The Solution: The ENC3-PRO includes a GPS Receiver Buoy on a cable (10m).
• How It Works: You can deploy the small buoy to the surface while remaining submerged. The console receives an instant satellite fix, corrects your Dead Reckoning drift, and resets your position with absolute accuracy. This allows for long-duration missions with zero navigational drift.

Advanced Mission Planning

• 29 Waypoints: Program complex search grids or multi-leg traverse routes with up to 29 distinct target points (compared to simpler routing on standard models).
• GIS Integration: Post-dive, your track data (including depth, temperature, and speed) can be exported via Bluetooth/USB to GIS software, Google Earth, or Excel for professional mapping.

Built for the Seacraft Ecosystem

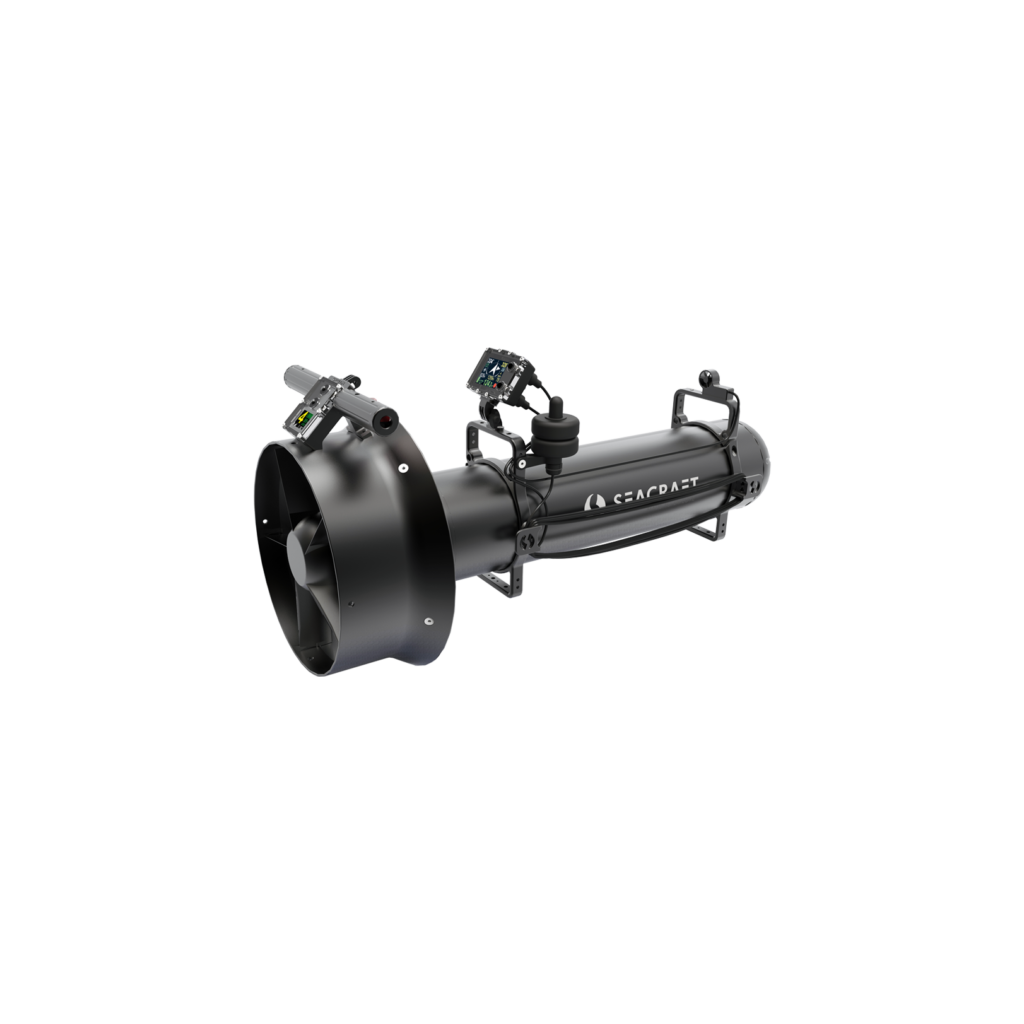

While it can be used independently, the ENC3-PRO integrates seamlessly with Seacraft Future and Ghost DPVs, using the scooter's speed sensor for even higher accuracy dead reckoning between GPS fixes.

Technical Specifications

• Positioning: Dead Reckoning + Live GPS Recalibration (via Buoy)
• Sensors: 3D Magnetometer, Gyroscope, Accelerometer
• Compass Accuracy: <3 Degrees
• Depth Rating: 300m (Tested to 350m)
• Routes: 50 Routes (29 Waypoints per route)
• Data Export: Bluetooth 4.2 / USB

Available Packages & Configurations

• ENC3-PRO Standalone Console
  Includes: ENC3-PRO Console, buoyancy foam cover, soft transport case, charging cable, charging port plugs (2 pcs), rubber buttons for steering module (4 pcs), spare seals set (2 pcs), and KIPP screws (2 pcs).
• Basic Sets (Without GPS Buoy)
  • For GO! DPVs : Includes ENC3-PRO Console, Speed sensor type D, and Universal mount on the control module or transport bracket.
  • For Future DPVs : Includes ENC3-PRO Console, Speed sensor type D, and ENC mounting bracket (ϕ160 mm).
  • For Ghost DPVs : Includes ENC3-PRO Console, Speed sensor type D, and ENC mounting bracket (ϕ208 mm).
  • For Other DPVs : Includes ENC3-PRO Console, Speed sensor type B (vertical), and Universal mounting bracket console/speed sensor (2 pcs).
• Complete Sets (Includes GPS Receiver & Buoy)
  • For Future DPVs : Includes ENC3-PRO Console, Speed sensor type D, ENC mounting bracket (ϕ160 mm), and GPS with Buoy complete set.
  • For Ghost DPVs : Includes ENC3-PRO Console, Speed sensor type D, ENC mounting bracket (ϕ208 mm), and GPS with Buoy complete set.
